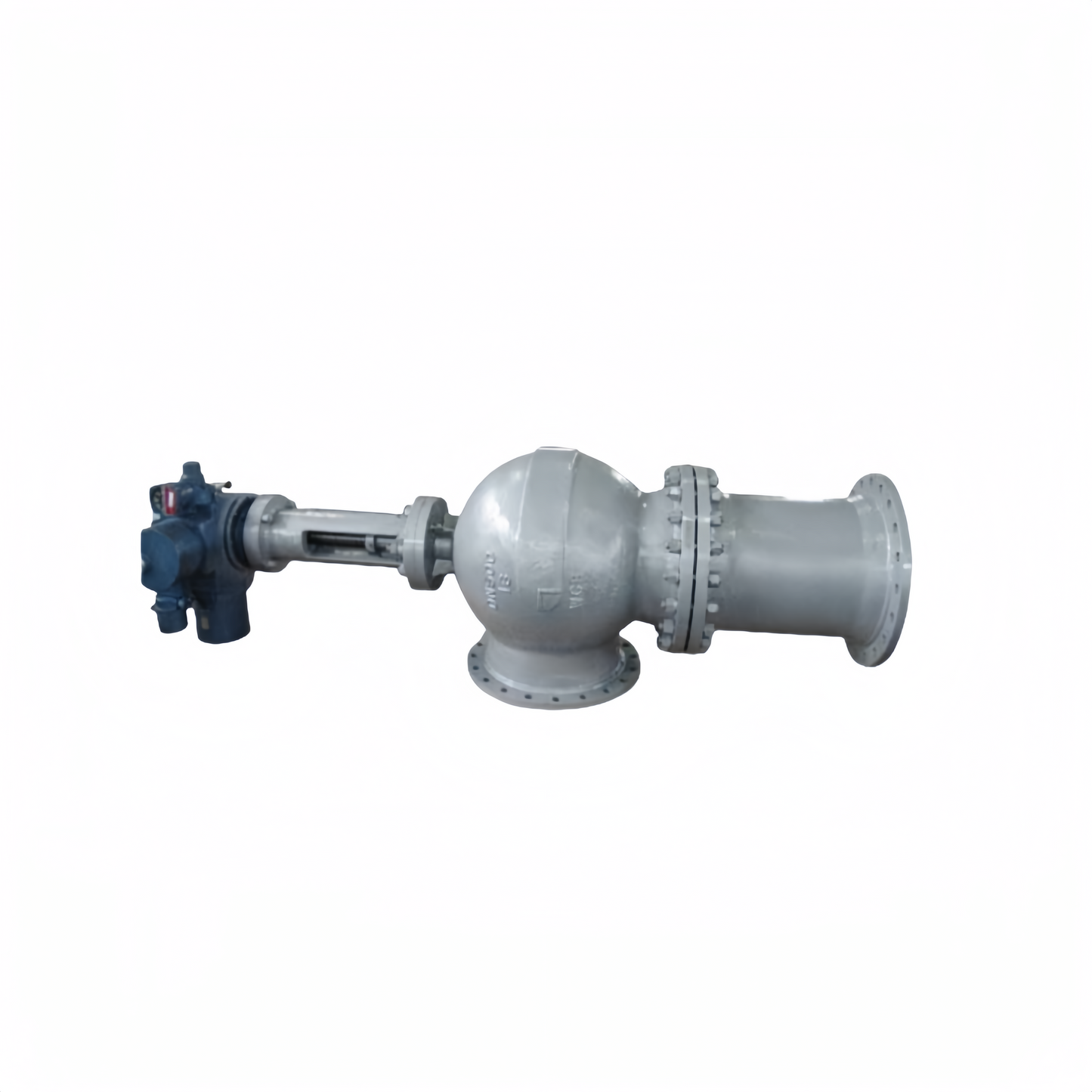

OUWEI ANGLE PATTERN SLURRY VALVE Globe Valve

Standards:API,BS,MSS,ASME,ASTM,GB
Manufacturing Standards
-Design: ASME B16.34
-Pressure-Temp. Rating: ASME B16.34
-Face to Face dimension: ASME B16.10
-Flanged Ends: ASMEB16.5(upto24")
-Buff Weld ends: ASMEB16.25
-Pressure Test:API 598
Manufacturing Range
-Ratings:From 150 Lbs.up to 900 Lbs
-Sizes:2"up to 24"
-Applicable Temperature:-64~560℃
Characteristics
Description: Bolted bonnet
OS&Y,lifting stem
Back seat design
Used for high-wearing,granules conditions
Sealing surface welded Stellite or Tungsten carbide
END:Flange connection (RF、FF、RTJ)Or Welded(SW)
operation
-Manual (handwheel or gearbox)
-Actuated(Electric,pneumatic or hydraulic)
