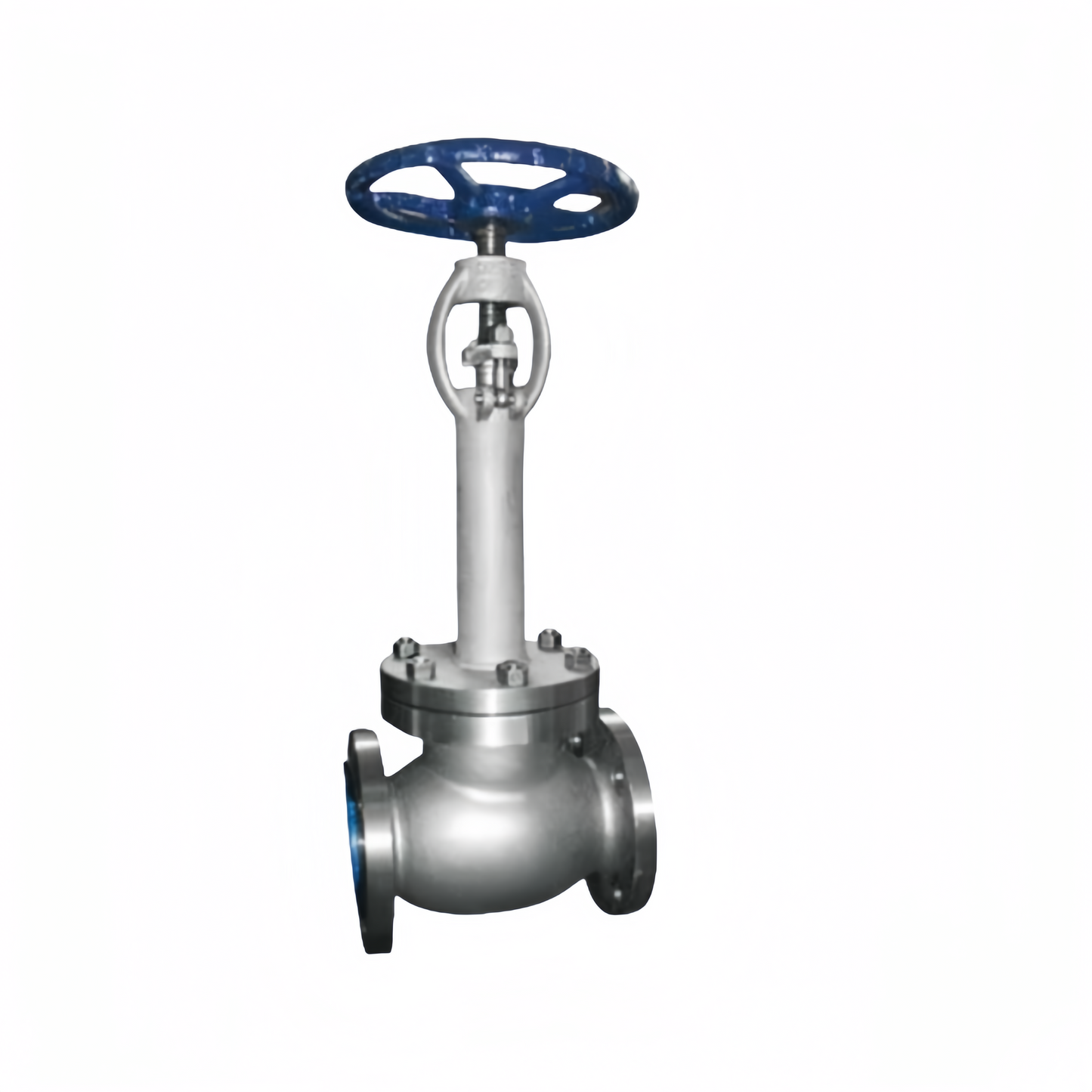

OUWEI CRYOGENIC GLOBE VALVE

Manufacturing standards
-Design:BS1873,ASMEB16.34,BS6364
-Pressure-Temp.Rating:ASME B16.34
-Face to Face dimension:ASME B16.10
-Flanged Ends:ASMEB16.5(upto24)
ASMEB16.47(above 26")
-Buff Weld ends:ASME B16.25
-Pressure Test:API 598
-Cryogenic Test:BS6364(-196℃)
Manufacturing Range
-Ratings:From 150 Lbs.up to 1500 Lbs
-Sizes:2"upto24"
-Applicable Temperature:-196~200℃
Characteristics
Description: Bolted bonnet,Extension Bonnet Design
OS&Y,liting Stem
Back seal design
Sealing surface weld Satellite or Tungsten carbide
Low leakage packing
Connection:Flange(RF.FF.RTJ) or Welded(SW)
operation
-Manual (handwheel or gearbox)
-Actuated(Electric,pneumatic or hydraulic)
Special applications
Cryogenic
