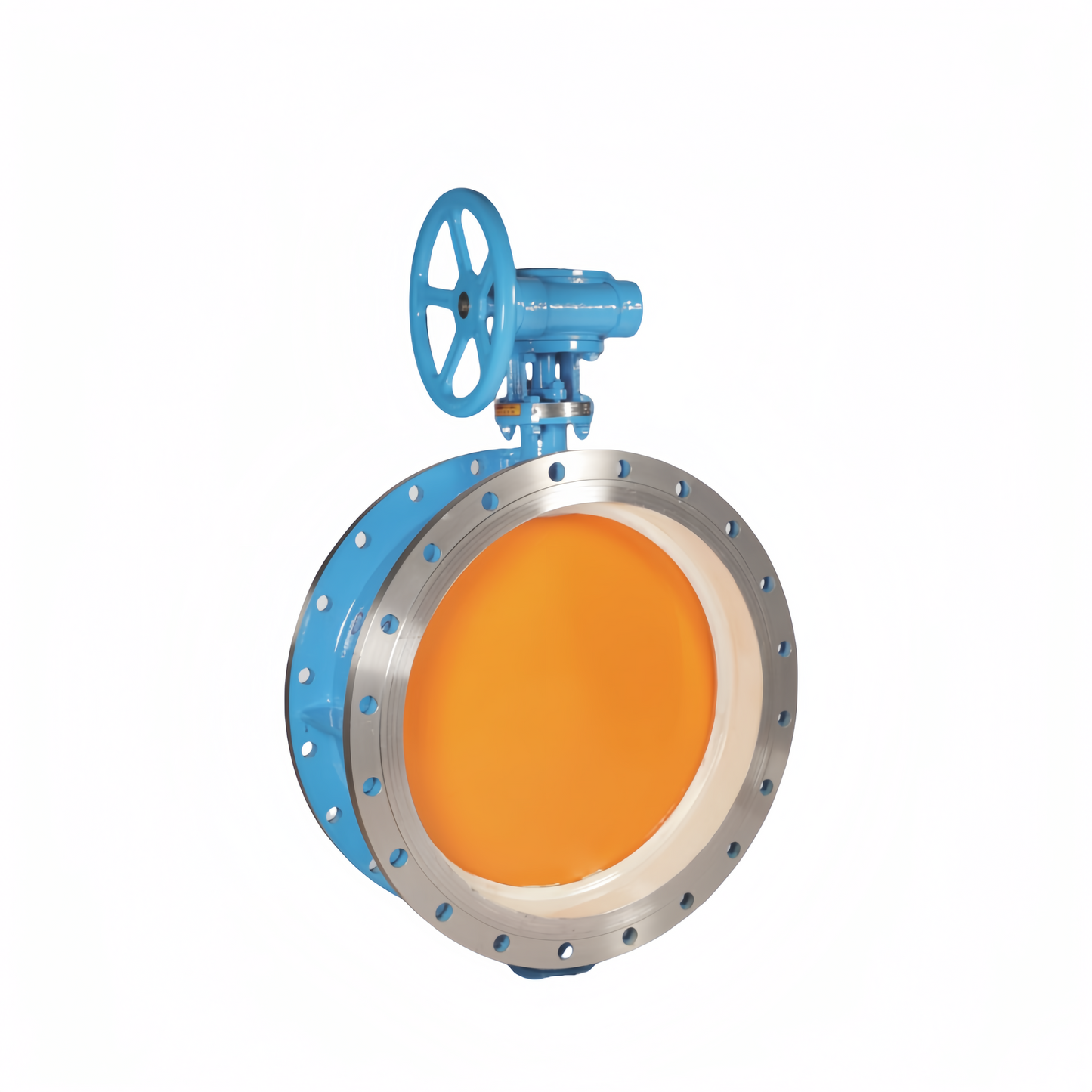

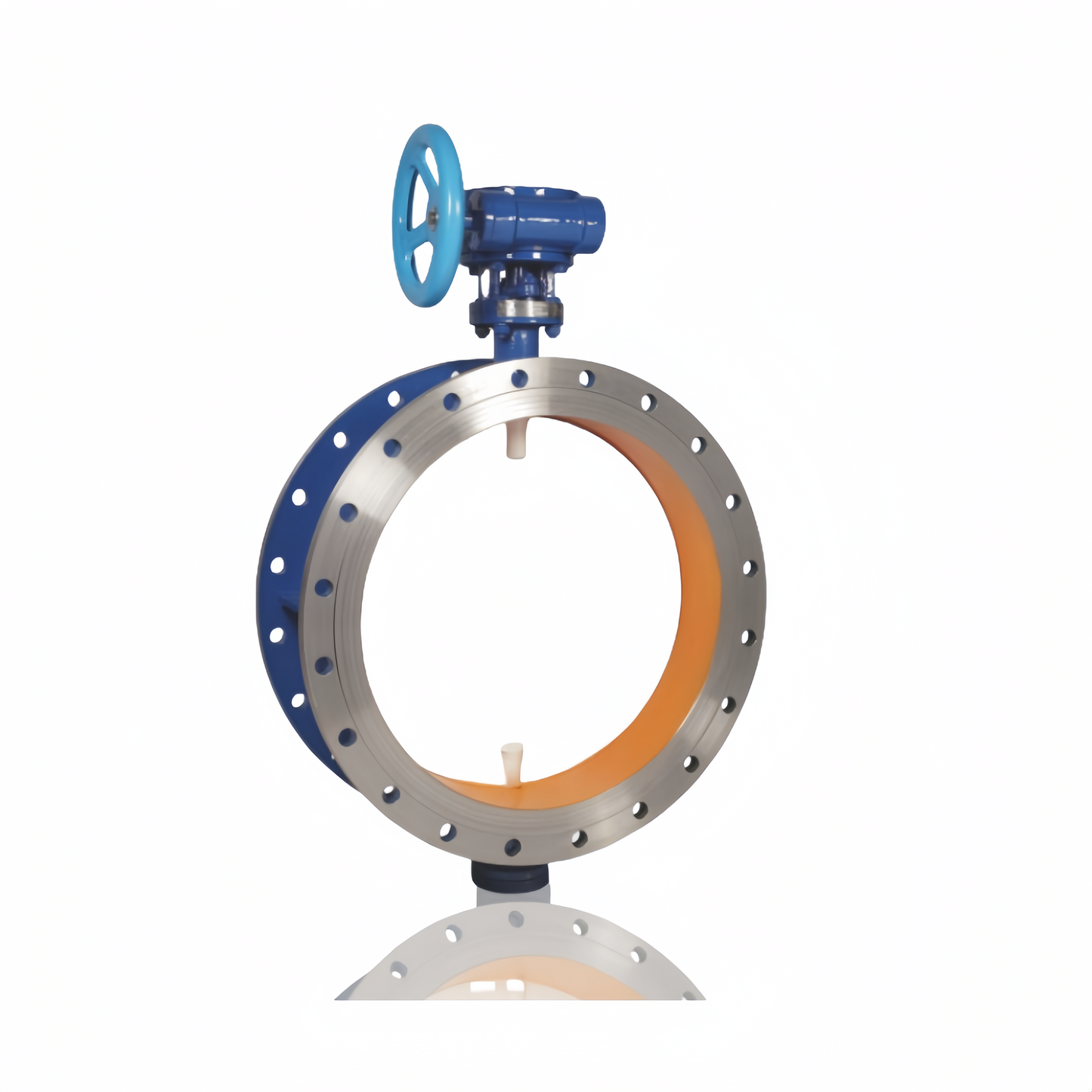

OUWEI VENTILATION BUTTERFLY VALVE

◆ Product Overview
Ventilation butterfly valve with manual lever mechanism or electric actuator butterfly plate to the valve opening and closing,in the case of does not stop the fan to reduce to the blast furnace air supply,excess gas into the atmosphere.a short structure size,light weight,easy installation,etc.The valve drive torque is small,easy,easy to operate.Set on the valve body sealing ring,seal,no visible gap between leak rate is small.Between the butterfly plate and the valve body expansion gap is big,can effectively prevent because of heat bilges cold shrink card death phenomenon.This valve can be equipped with a variety of device drivers,such as manual gear,worm gear drive,pneumatic device and electric device.

◆Use
Ventilation butterfly valve is a kind of closed type butterfly valve,widely used in building materials,petroleum,metallurgy,mining,electricity and other
production industries,suitable for medium temperature 425 ℃ or less and nominal pressure of 0.1 MPa pipes,used to ventilation regulating medium flow

◆ Characteristics
1.This valve uses the steel plate welding manufacture,structure size short,small volume,light weight,convenient installation;
2.This valve drive torque is small,easy,convenient and reliable operation;
3.This set the sealring on the valve body,no visible gap sealing,smallleakage rate;
4.The butterfly plate and the expansion of the gap between the body,can effectively prevent because of heat bilges cold shrink card
death phenomenon;
5.This valve can be equipped with all kinds of driving devices,such as manual device,electric actuator,pneumatic device,device,etc;
6.The valve core can be made a two-dooror Venetian,in orderto meet the needs of different users.
