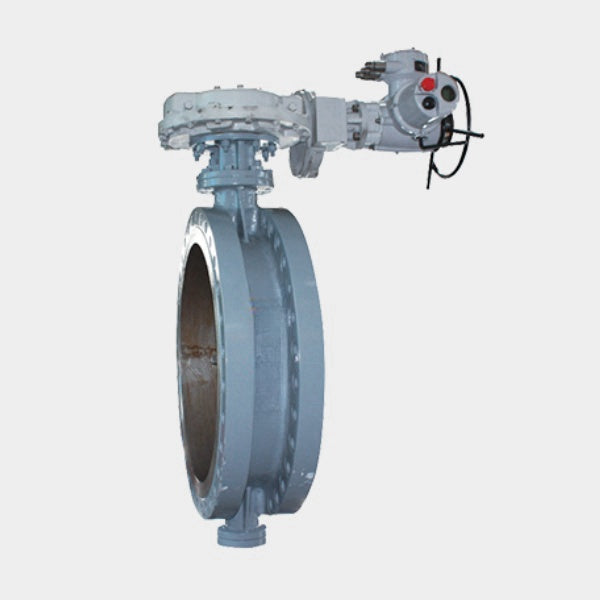

OUWEI Triple Offset Butterfly Valve Nominal size: NPS2-120 (DN50-3000) Pressure rating: Class150-600 (PN6-100) Working temperature: -46 ℃~200 ℃ Main material: carbon steel, stainless steel, etc End connections: flange, wafer, lug, etc

Operation mode: handle, worm gear, electric, hydraulic, pneumatic, etc

1、 Specifications and brief description

Specification: NPS 2-120 (DN 50-3000), Class150-600 (PN6-100)

Description: cast steel metal sealed triple eccentric butterfly valve

2、 Detailed information

Product Overview

The triple offset butterfly valve can be suitable for various harsh working conditions. Its eccentric design allows the sealing pair to detach immediately when the valve is opened, reducing friction between sealing surfaces, greatly improving the service life of the valve. At the same time, it has essential fire resistance characteristics and is widely used in industrial pipelines such as metallurgy, power, petrochemical, air, water supply and drainage, and municipal construction, for regulating flow and cutting off fluid.

Design and inspection can comply with standards such as API 609, GB/T 12238, JB/T8527, etc.

main features

① Triple eccentric sealing structure

② Corrosion resistance and long service life

③ The sealing surface of the butterfly plate or valve seat is welded with hard alloy, and the sealing surface is wear-resistant

④ Suitable for high-temperature environments
